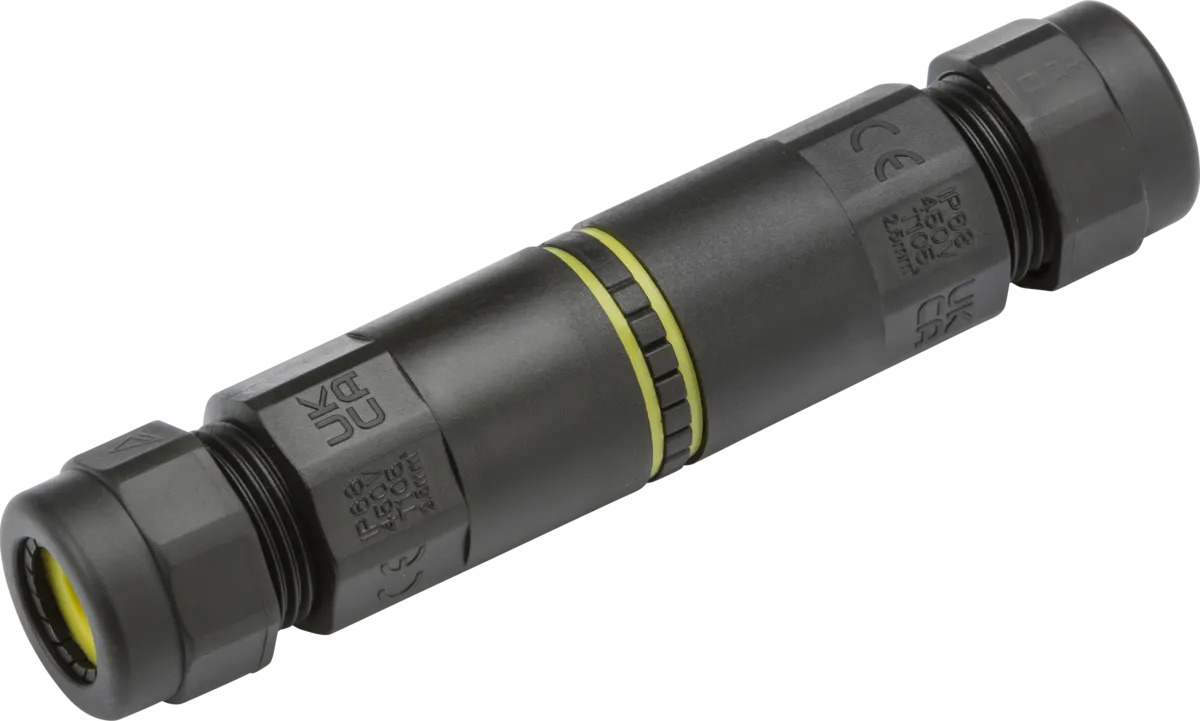

Knightsbridge JB0013 IP68 24A Weatherproof Inline Connector with Lever Terminals (3 Pole)
IP68 weatherproof inline cable connectors with lever terminals for tool free installation. Ideal for repairing and extending. Suitable for outdoor and underwater fixtures.
- IP68 rated (@5bar)
- Max. 24A 250V/450V PTI 250, T85
- Manufactured from PA66, V-0, 960°C, PTI:250 with silicon sealing gasket.
- Silver-plated stainless-steel lever terminals.
- Min: 5mm cable diameter
- Max: 14mm cable diameter
- M22 size cable glands
- For use with H07RNF 3G 0.75mm2 - 2.5mm2 cable
- Operating Temperature: -30° C ~ 85° C
- Storage Temperature: -30° C ~ 85° C
- Barometric pressure: 86~106Kpa
Data Sheet:
